Voltage Stabilizer
You don’t have to make a special effort to get your refrigerator’s compressor to break down. The refrigerator compressor does not break down by chance. It is not working because the electricity that supplies it has been oscillating for months, above and below 220V. Low voltage at peak summer demand, unexpected voltage spikes once power is restored after load shedding, or power lines that are underwhelming in capacity silently harm air conditioners, refrigerators, medical equipment, and office equipment throughout Pakistan.
Most people don’t realize how much they are being charged for repairs until they receive a repair bill. A voltage stabilizer works the other way; it corrects the voltage of the power supply and keeps the output safe regardless of what the power supply sends to it.
This guide explains what a voltage stabilizer is, the types available for homes, clinics, and factories, how to determine the correct size, things to look for before purchase, and much more. You would be surprised how much we see of unstable power at Capasee Electro Medical Engineering, and the following is just our experience in the field, not a brochure.

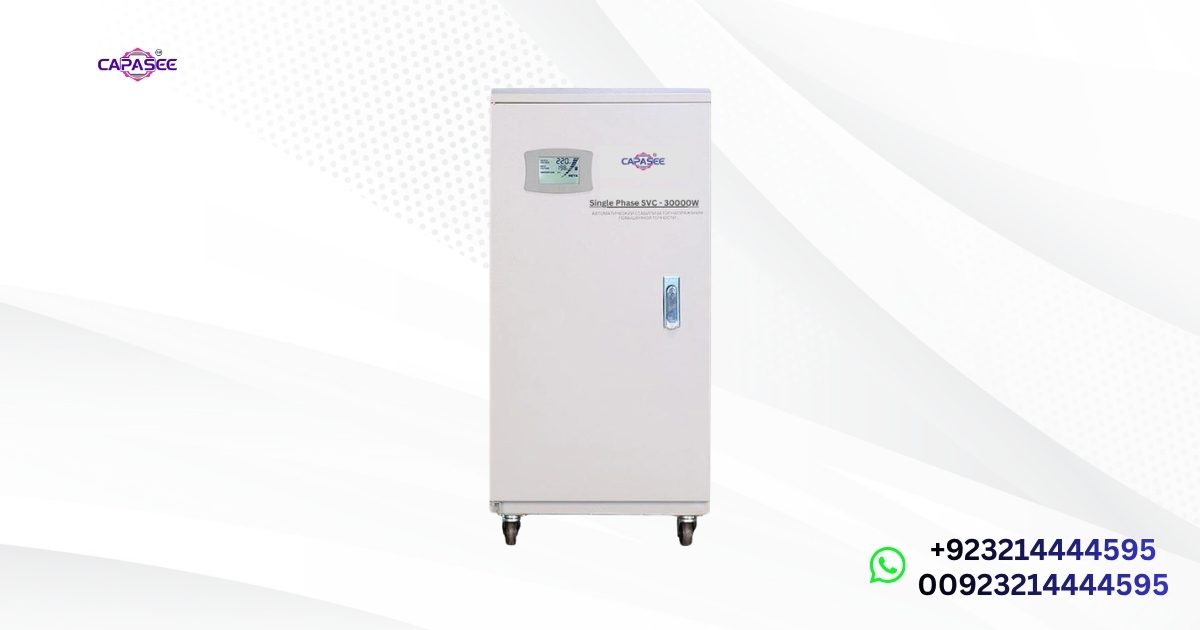

What Is a Voltage Stabilizer and Why Is It Important in Pakistan?
A voltage stabilizer is a device used to make an unstable power supply more stable and to increase the output voltage to a stable value close to 220V. It is important in Pakistan, as appliances cannot withstand variations in grid voltage.
Imagine a July evening in a busy neighbourhood. All air conditioners turn on simultaneously, dropping the line voltage below 200V and overloading appliances.
How Does a Voltage Stabilizer Protect Appliances From Low and High Voltage?
It compares the amount of electricity flowing into the machine and changes the tap or winding of a transformer to bring the output back within a normal range. If the input exceeds correction limits, the unit shuts off.
A time delay function is also most of the time included in a good model. It has a more extended power duration after an outage, which prevents a large surge of power when the lights come back on, something compressors are exposed to.
Why Do Pakistani Homes Need a Voltage Stabilizer for ACs, Refrigerators, and Medical Devices?
First, compressor and motor damage. When they receive a low voltage, they have to draw a greater current and overheat the windings, reducing their running life.
The tolerance of medical and laboratory devices is even lower. The nebulizer may be out of calibration, and the ECG unit or analyzer may turn off during use. At Capasee Electro Medical Engineering, this is the basis for their protection, and clinics continue to maintain accurate equipment and machine operation.
You may like this blog:Fridge Stabilizer Price in Pakistan

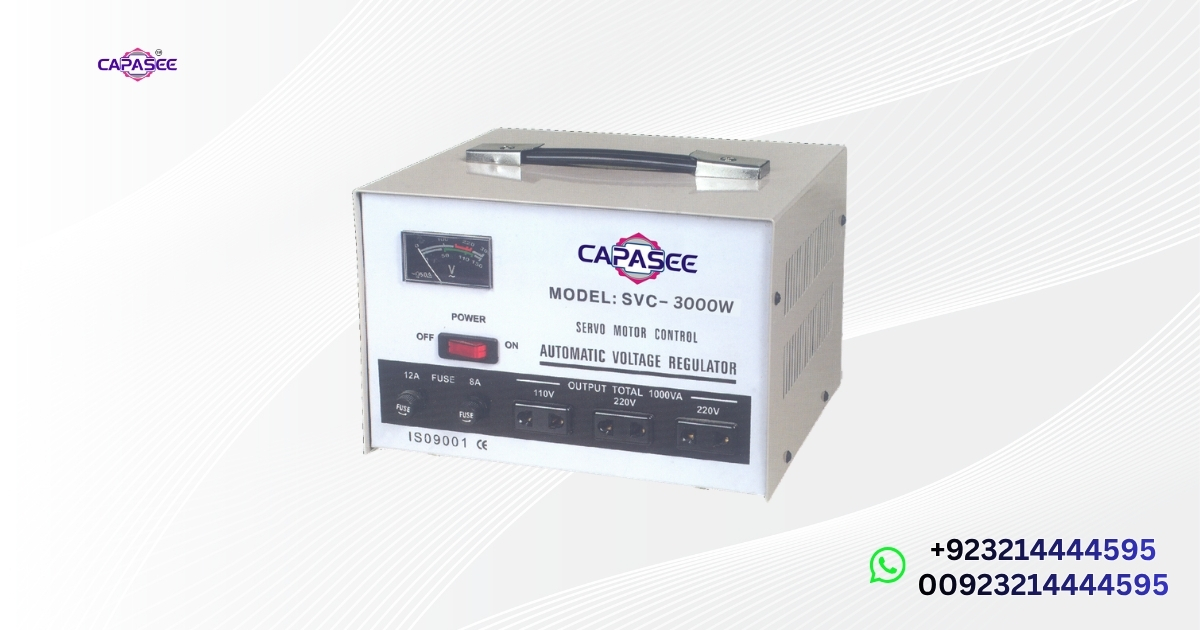

Which Voltage Stabilizer Is Best for Your Appliance in Pakistan?
The most suitable method is dependent on the load and sensitivity of each appliance. A relay stabilizer is suitable for small electronic equipment, but a servo motor stabilizer is better for air conditioners and medical equipment.
Choose stabilizer that fits the appliance rather than the pocket. If a pair of units is not a match, the unit trips the relay repeatedly or leaves the device it was purchased for vulnerable. A family of people purchasing a 1.5 ton AC unit will immediately overload the unit as soon as the first hot afternoon arrives if they purchase a 1 KVA unit for their AC.
Relay vs. Servo Motor Voltage Stabilizer: Which Type Should You Choose?
When looking to protect light, economical TVs, routers, and refrigerators, select a relay stabilizer. Relay units provide small step output voltage changes, and they are compact and cost effective, as they switch rapidly among fixed voltage steps. A voltage stabilizer helps protect these appliances from voltage fluctuations.
Choose a servo motor stabilizer to use for ACs, deep freezers, and medical or laboratory equipment. A motor driven mechanism provides smooth output, tighter accuracy, and wider input swings. It is more costly but will preserve valuable equipment much better.
How to Calculate the Right KVA or Wattage for an AC, Refrigerator, or Equipment?
To determine the appliance’s running watts, divide the appliance’s watts by 0.8 and then add a safety factor of 25 per cent. A 1.8 kW (approx. 1.5 ton) AC unit consumes approximately 2.8 KVA, so 3 KVA is the minimum. Choose a voltage stabilizer with sufficient capacity for safe operation.
Compressors require a strong start up pull, so go up one size for ACs and freezers. Check the wattage on the nameplate of the appliance and sum the loads if a stabilizer is being used to power more than one appliance.
Voltage Stabilizer Size Guide for Common Pakistani Appliances
Refer to this table as a guideline, then check the actual number on the nameplate of your appliance.
| Appliance / Equipment | Recommended Stabilizer Capacity | Best Stabilizer Type | Capasee Recommendation |
| LED TV, Wi-Fi router, small electronics | 500 to 1,000 W | Relay or digital stabilizer | Compact Capasee stabilizer for sensitive electronics |
| Refrigerator / deep freezer | 1 to 2 KVA | Relay or servo stabilizer | Stabilizer with time delay protection |
| 1 ton inverter AC | 2 to 3 KVA | Servo or heavy duty relay stabilizer | Wide input range stabilizer |
| 1.5 ton AC | 3 to 5 KVA | Servo motor stabilizer | High accuracy Capasee servo stabilizer |
| Medical equipment / laboratory devices | Depends on the load | Servo/precision stabilizer | Capasee Electro Medical Engineering stabilizer for stable, protected power |
Voltage Stabilizer Price in Pakistan and Key Features to Check Before Buying
A good voltage stabilizer price ranges from a few thousand rupees for small electronics to over Rs. 150,000 for industrial loads. Capacity, type, and build quality are the most important pricing factors to consider; compare these three first and then compare brands.
The cheap unit will skimp on some things, such as thin winding wire and weak relays. A little more is typically a cheaper way to go than to replace the compressor that has burnt out.
How Much Does a Voltage Stabilizer Cost in Pakistan?
Price increases as the capacity increases, and servo models are higher in price than the relay models of the same size. A 2 KVA servo stabilizer is now listed on the internet by Pakistani retailers at around the price of Rs. 20,000, and a 10 KVA unit is is around Rs. There are approximately 85,000 20 KVA units, ranging approximately from Rs. 157,000 to Rs. 225,000. The voltage stabilizer price depends on capacity and technology.
The following table is only a general guide. Market rates fluctuate depending on the rate of the dollar and the copper prices, so please contact Capasee before making an estimate.
| Capacity | Typical Use | Indicative Servo Stabilizer Price (PKR) |
| 2 KVA | Refrigerator, small AC, office equipment | Around 20,000 |
| 3 to 5 KVA | 1.5 ton AC, clinic equipment | Between the 2 KVA and 10 KVA figures |
| 10 KVA | Small clinic, shop, or lab | Around 85,000 |
| 20 KVA | Workshop, diagnostic centre, small factory | 157,000 to 225,000 |
Which Features Matter Most: Copper Winding, Wide Input Range, Delay Timer, and Overload Protection?
Look for the following four; pure copper winding, broad input range, delay timer, and overload protection. In Pakistan, during long summer loads, copper performs cooler and lasts longer than aluminium.
For the stabilizer to operate in the event of the grid voltage coming very low, a wide input range such as 140V to 280V is required. A delay timer protects compressors after a power outage, and overload protection will turn off the compressor before a fault can reach your appliance. A suitable voltage stabilizer provides added protection during voltage fluctuations.
This is a quick test that can be performed in any shop. Find out the winding material, actual input range, and the time in seconds for the delay. If they still don’t react, step away.
View Product: Our Products
Where to Buy a Reliable Voltage Stabilizer in Pakistan?
Buy from a supplier who tests the unit, can explain its specifications, and will support it following the sale. A voltage stabilizer is a protection device, so poor after sales service is a real danger.
Refuse any salespeople who suggest a size without inquiring about your appliance. A clinic that has an undersized unit for a lab analyzer will find that it trips during high demand and loses test results, whereas a good salesperson will make sure this does not happen.
Why Choose Capasee Electro Medical Engineering for Voltage Stabilizers?
Capasee Electro Medical Engineering specializes in power protection for sensitive equipment such as medical and laboratory equipment. This concentration is reflected in our choice of capacity, input range, and accuracy, as a diagnostic machine requires more stable power than a ceiling fan. A suitable voltage stabilizer supports reliable equipment operation.
This is not a sales target recommendation; it’s a byload recommendation. Our team asks you what you will connect, looks at the nameplate rating, and recommends a stabilizer with a generous margin for startup surges.
How to Order the Right Capasee Voltage Stabilizer for Your Home, Office, or Medical Facility?
Follow four steps. Record all appliances that will be connected to the voltage stabilizer, the appliance wattage on each nameplate, and then sum them all together. Next, reach out to Capasee to let them know that amount and where you are, and they will confirm the capacity and type.
Share the tonnage of the AC for the house and refrigerator information. If it’s an office or medical facility, let us know the name and model number of the equipment to match the precision level. You will then be given a transparent proposal as well as a quote before you pay anything.
Frequently Asked Questions (FAQs)
Which stabilizer is best for a fridge in Pakistan?
Most household refrigerators can be protected with a 1 to 2 KVA, time delayed relay or servo stabilizer. Delay is used to safeguard the compressor.
How much voltage stabilizer is required for a home?
This is based on your load. Calculate the running watts of all the appliances connected to the circuit and divide by 0.8 to take into account efficiency losses, and then by 25 per cent for a margin.
What is the difference between a stabilizer and a UPS?
A stabilizer is used to correct the voltage but does not contain a battery, whereas a UPS stores power for voltage outages. Many sensitive pieces of equipment require both.
How do I choose the right stabilizer capacity (kVA)?
Look on the appliance nameplate for the wattage, divide by 0.8 to determine KVA, then choose the next size up for the startup surge.
What are the main types of voltage stabilizers?
Main types include relay, servo motor, and static stabilizers. Relay suits light loads, ACs, and medical devices; static suits have a fast response.
What does a voltage stabilizer do?
The voltage stabilizer helps to maintain a stable power supply to your appliance around 220 volts. Adjusts low and high voltage to prevent equipment from overheating and being damaged.
What is the difference between “boosting” and “bucking”?
Boosting is a way of increasing the low input voltage to the normal level, and bucking is a way of decreasing the high input voltage to the normal level.
Where should a voltage stabilizer be installed?
Install it in an indoor location, near the power point of the appliance, in a dry, well ventilated area away from water, dust, and direct sunlight.
Do voltage stabilizers need maintenance?
Yes, lightly. Clean dust frequently; replace carbon brushes and connections on servos every year or so by a qualified person.
Conclusion
The damage caused by an unstable grid in Pakistan will not be addressed this summer but can be prevented. A copper wound voltage stabilizer with a wide input range, delay timer, and overload protection ensures the safe operation of your appliances, including your AC, refrigerator, and medical equipment. When it works out the first time, you won’t have to deal with additional repair costs or surprise breakdowns.
Our appliance wattage, combined with the contact of Capasee Electro Medical Engineering, will be able to recommend you the right size and type of appliance for your home, office or clinic. Pass this guide around to a neighbour or colleague who is still using expensive equipment plugged directly into the wall. A dead compressor is much more expensive than good power protection.
